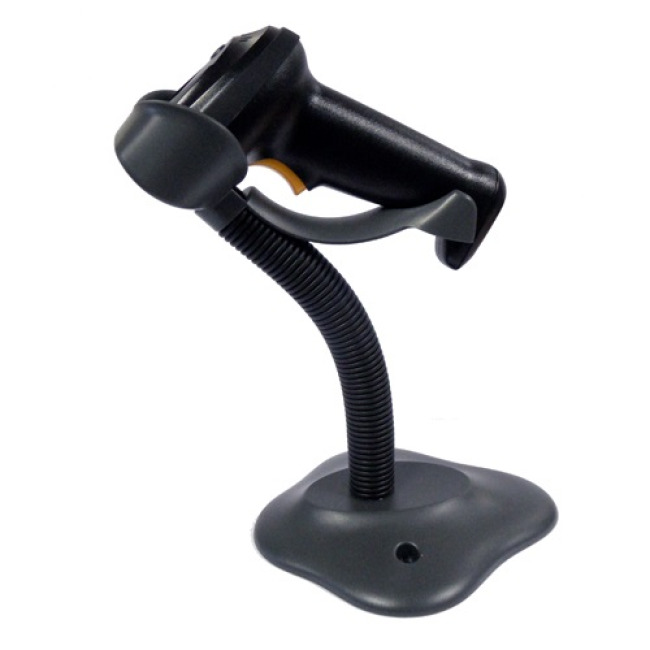

Unitech El 2D Imager Ms338-1Cg Usb El Tipi Karekod Okuyucu Ayaklı

Unitech El 2D Imager Ms338-1Cg Usb El Tipi Karekod Okuyucu Ayaklı - Metin Köse Bilisim

Barkod Okuyucu

Stok Kodu : UNITECH MS338

Stok Durumu : Stokta Yok

Bu ürün geçici olarak temin edilememektedir

Favorilere Ekle Karşılaştırma Listesine Ekle

Ürün Açıklaması

Operational & Performance

Operational & Performance

Receiving Device Imager sensor, 640 x 480 pixels
Light Level Max. 100.000 LUX
Scan Skew ± 60°
Scan Pitch ± 40°
Scan Roll 360°
Indicator Beep, LED

Reading distance (DOF)

Reading distance (DOF)

1D
5mil Code39 (3 chars): 1.5 - 5.5 cm
0mil Code39 (3 chars): 1.0 - 11.0 cm
3mil UPC (6 chars): 0.5 - 13.0 cm
20mil Code39 (5 chars): 4.0 - 18.0 cm

2D
6.7mil PDF417 (20 chars): 1.0 - 8.2 cm
10mil QR (20 chars): 1.0 - 10.0 cm
10mil DM (20 chars): 1.0 - 8.0 cm
20mil QR (20 chars): 1.5 - 16.5 cm

Symbologies

Symbologies

1D:
UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8,
ISBN (Bookland EAN), ISSN, Code 39,
Code 39 full ASCII, Code 32, Trioptic Code 39,
Interleaved 2 of 5, Industrial 2 of 5
(Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7),
Code 128, UCC/EAN 128, ISBT 128, Code 93,
Code 11 (USD-8), MSI/Plessey, UK/Plessey,
China Post, China Finance, Telepen,
GS1 DataBar (formerly RSS) variants.

2D:
PDF417, QR Code, DataMatrix

Power Source
Power Source Operation Voltage 5 DC ± 0.25 V
Power: Standby: 0.40 W, Working: 1.20 W
Curreny: Standby: 80 mA, Working: 240 mA
Data Formatting
Data Formatting Prefix, Code name, Preamble, Code ID, Code length, Code
data ,Postamble, Suffix
Enclosure
Enclosure Scanner dimension 178mm x 69mm x 82mm
Scanner weight 146g (without cable)
Environmental

Environmental

Mechanical Shock 1.6m onto concrete
IP Rate IP42
Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C
Relative Humidity 5% to 90% non-condensing

Operation modes
Operation modes Auto-detection Mode, Hand-held Mode.
Connectivity
Connectivity USB cable
Safety & EMC
Safety & EMC Laser: EN60825-1, Class 1
EMC: EN55022, EN55024
Electrical: EN60950-1
Photobiological: EN62471:2008
Regulator approvals
Regulator approvals CE, FCC
Warranty
Warranty 5 Years scanner only*
1 Year USB cable
